MILES-GUESS Classification Example Notebook

John Schreck, David John Gagne, Charlie Becker, Gabrielle Gantos, Dhamma Kimpara, Thomas Martin

Objective

This notebook is meant to demonstrate a functional example of how to use the miles-guess repository for training an evidential classification model.

Steps to get this notebook running: 1) Follow package installation steps in the miles-guess ReadMe. 2) Run the cells in this notebook in order.

import yaml
import numpy as np
import pandas as pd

from ptype.data import load_ptype_uq, preprocess_data

from mlguess.keras.models import CategoricalDNN

2024-02-21 16:16:23.324617: I tensorflow/core/util/port.cc:113] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.
2024-02-21 16:16:25.122247: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:9261] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2024-02-21 16:16:25.122295: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:607] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2024-02-21 16:16:25.234432: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1515] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2024-02-21 16:16:25.385854: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 AVX512F AVX512_VNNI FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2024-02-21 16:16:34.518222: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT
/glade/work/ggantos/conda-envs/guess/lib/python3.10/site-packages/tensorflow_addons/utils/tfa_eol_msg.py:23: UserWarning:

TensorFlow Addons (TFA) has ended development and introduction of new features.
TFA has entered a minimal maintenance and release mode until a planned end of life in May 2024.
Please modify downstream libraries to take dependencies from other repositories in our TensorFlow community (e.g. Keras, Keras-CV, and Keras-NLP).

For more information see: https://github.com/tensorflow/addons/issues/2807

  warnings.warn(

config = "../config/ptype/deterministic.yml"

with open(config) as cf:
    conf = yaml.load(cf, Loader=yaml.FullLoader)

conf["model"]["epochs"] = 1
conf["model"]["verbose"] = 1

input_features = conf["input_features"]
output_features = conf["output_features"]

# flag for our ptype model
if all([x in conf for x in input_features]):
    input_features = [conf[x] for x in input_features]
    input_features = [item for sublist in input_features for item in sublist]

metric = conf["metric"]

# load data using the split (see n_splits in config)
data = load_ptype_uq(conf, data_split=0, verbose=1, drop_mixed=False)

scaled_data, scalers = preprocess_data(
    data,
    input_features,
    output_features,
    scaler_type=conf["scaler_type"],
    encoder_type="onehot",
    groups=[]
)

mlp = CategoricalDNN(**conf["model"], callbacks=[])

mlp.fit(scaled_data["train_x"].values, scaled_data["train_y"])

6/6 [==============================] - 10s 2s/step - loss: 248.4830

<keras.src.callbacks.History at 0x152c8c5a3310>

pred_probs = mlp.predict(scaled_data["val_x"])

10/10 [==============================] - 2s 199ms/step

_, ale, epi, entropy, mutual_info = mlp.predict_dropout(
    scaled_data["val_x"], mc_forward_passes=10
)

/glade/work/ggantos/conda-envs/guess/lib/python3.10/site-packages/numpy/core/fromnumeric.py:57: FutureWarning: 'DataFrame.swapaxes' is deprecated and will be removed in a future version. Please use 'DataFrame.transpose' instead.
  return bound(*args, **kwds)

Use an evidential neural network

config = "../config/ptype/evidential.yml"

with open(config) as cf:
    conf = yaml.load(cf, Loader=yaml.FullLoader)

conf["model"]["epochs"] = 5
conf["model"]["verbose"] = 1

ev_mlp = CategoricalDNN(**conf["model"])

history = ev_mlp.fit(scaled_data["train_x"], scaled_data["train_y"])

Epoch 1/5
6/6 [==============================] - 6s 656ms/step - loss: 0.7862
Epoch 2/5
6/6 [==============================] - 4s 655ms/step - loss: 0.7532
Epoch 3/5
6/6 [==============================] - 4s 627ms/step - loss: 0.7256
Epoch 4/5
6/6 [==============================] - 4s 656ms/step - loss: 0.7400
Epoch 5/5
6/6 [==============================] - 4s 647ms/step - loss: 0.7708

#pred_probs = ev_mlp.predict(scaled_data["val_x"])

pred_probs, u, ale, epi = ev_mlp.predict_uncertainty(scaled_data["val_x"])

10/10 [==============================] - 1s 102ms/step

name = "val"
pred_probs = pred_probs.numpy()
u = u.numpy()
ale = ale.numpy()
epi = epi.numpy()
true_labels = np.argmax(data[name][output_features].to_numpy(), 1)
pred_labels = np.argmax(pred_probs, 1)
confidences = np.take_along_axis(pred_probs, pred_labels[:, None], axis=1)
data[name]["true_label"] = true_labels
data[name]["pred_label"] = pred_labels
data[name]["pred_conf"] = confidences
for k in range(pred_probs.shape[-1]):
    data[name][f"pred_conf{k+1}"] = pred_probs[:, k]
data[name]["evidential"] = u
data[name]["aleatoric"] = np.take_along_axis(
    ale, pred_labels[:, None], axis=1
)
data[name]["epistemic"] = np.take_along_axis(
    epi, pred_labels[:, None], axis=1
)
for k in range(pred_probs.shape[-1]):
    data[name][f"aleatoric{k+1}"] = ale[:, k]
    data[name][f"epistemic{k+1}"] = epi[:, k]

true_labels = data[name]["true_label"].values
pred_labels = data[name]["pred_label"]
pred_probs = data[name][[f"pred_conf{k+1}" for k in range(4)]].values
confidences = data[name]["pred_conf"]

evidential = data[name]["evidential"]
total = np.sqrt(data[name]["epistemic"] + data[name]["aleatoric"])
epistemic = np.sqrt(data[name]["epistemic"])
aleatoric = np.sqrt(data[name]["aleatoric"])

from mlguess.classifier_uq import uq_results

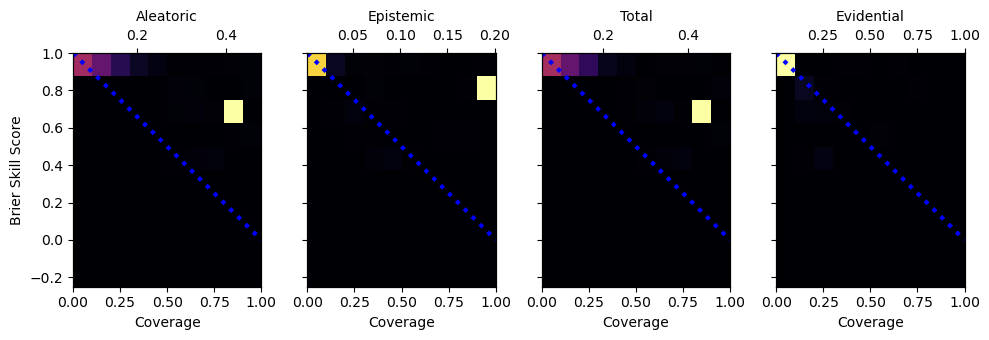

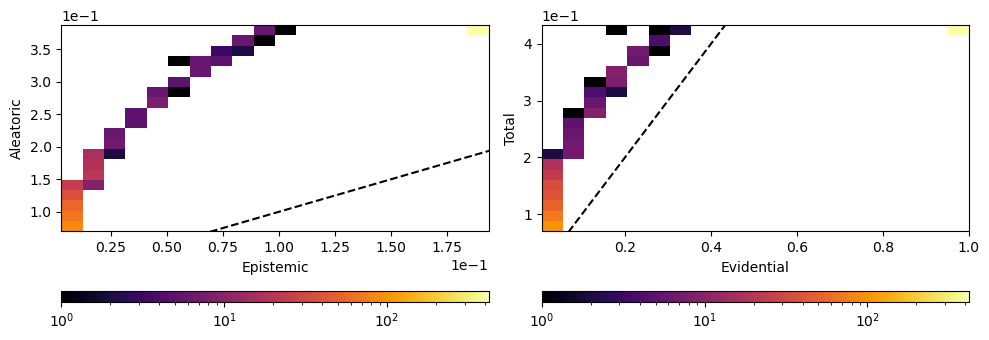

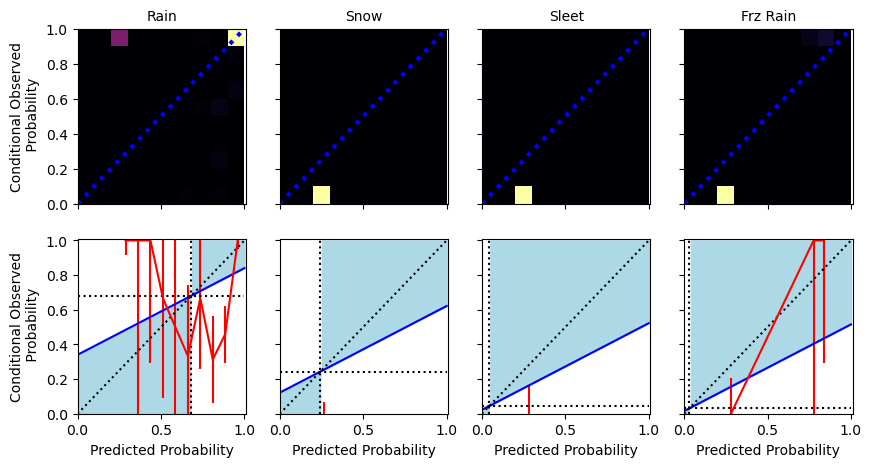

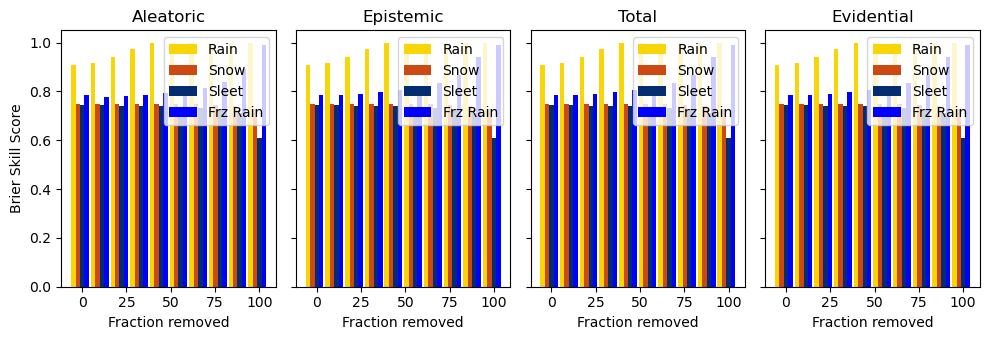

uq_results(data['val'], prefix='val')
